| 22AWG STERLING SILVER SAW CUT RINGS | |
|
ALL RINGS ON THIS PAGE: STERLING SILVER (92.5% SILVER) / 1 OZ MINIMUM PURCHASE / 0.008"(0.25mm) KERF / TUMBLED FOR A MINIMUM
OF 1 HOUR / TOLERANCE MARGIN OF ERROR 0.002" (0.05mm). NO WELDED RINGS ARE AVAILABLE. IF THERE IS NOT A PICTURE,
I HAVEN'T CUT THE RINGS YET AND THE SIZES ARE ESTIMATED.
CLICK HERE FOR GOOGLE DOC SPREADSHEET OF ALL INFORMATION ON THIS PAGE. CHOOSE THE SIZE RING SIZE YOU WANT, CLICK ON "ADD TO CART," AND THEN ADJUST THE # OF OZ OR LBS IN THE PAYPAL SHOPPING CART. *UNDERSTANDING THE DIFFERENCE BETWEEN RIGHT AND LEFT HANDED RINGS. |
|
|

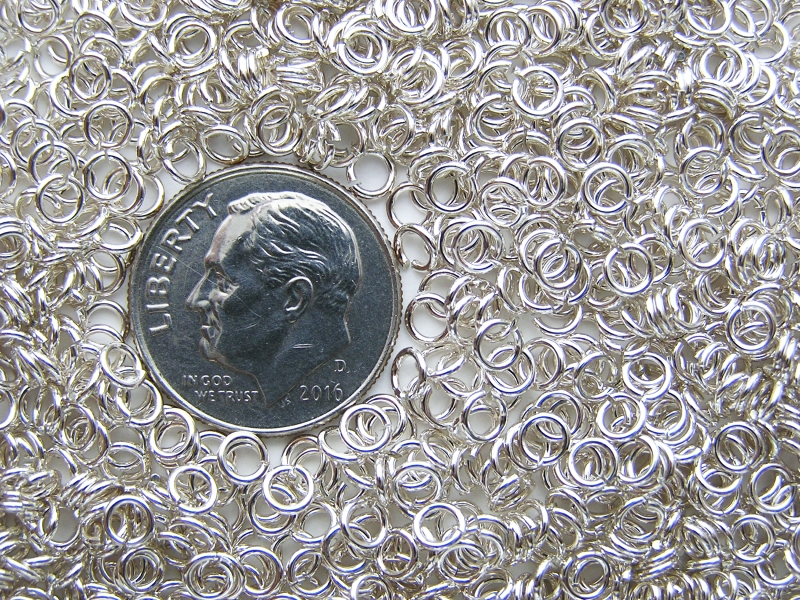

TITLE: 22AWG 11/128"
ACTUAL MANDREL DIAMETER: 0.085" (2.16mm) ACTUAL ID: 0.088" (2.24mm) ACTUAL WD: 0.025" (0.64mm) AR: 3.52 RINGS/OZ: 1020 OZ/50 RINGS: 0.049 SPRINGBACK: 0.003" (0.08mm) |
|
TITLE: 22AWG 13/128"
ACTUAL MANDREL DIAMETER: 0.101" (2.57mm) ACTUAL ID: 0.105" (2.67mm) ACTUAL WD: 0.025" (0.64mm) AR: 4.20 RINGS/OZ: 862 OZ/50 RINGS: 0.058 SPRINGBACK: 0.004" (0.1mm) |
|

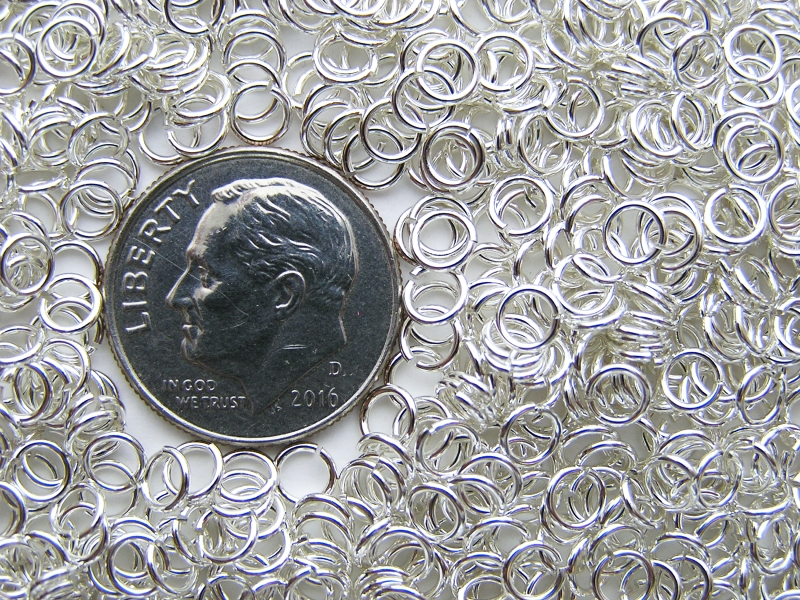

TITLE: 22AWG 0.104"
ACTUAL MANDREL DIAMETER: 0.104" (2.64mm) ACTUAL ID: 0.108" (2.74mm) ACTUAL WD: 0.025" (0.64mm) AR: 4.32 RINGS/OZ: 847 OZ/50 RINGS: 0.059 SPRINGBACK: 0.004" (0.1mm) |
|

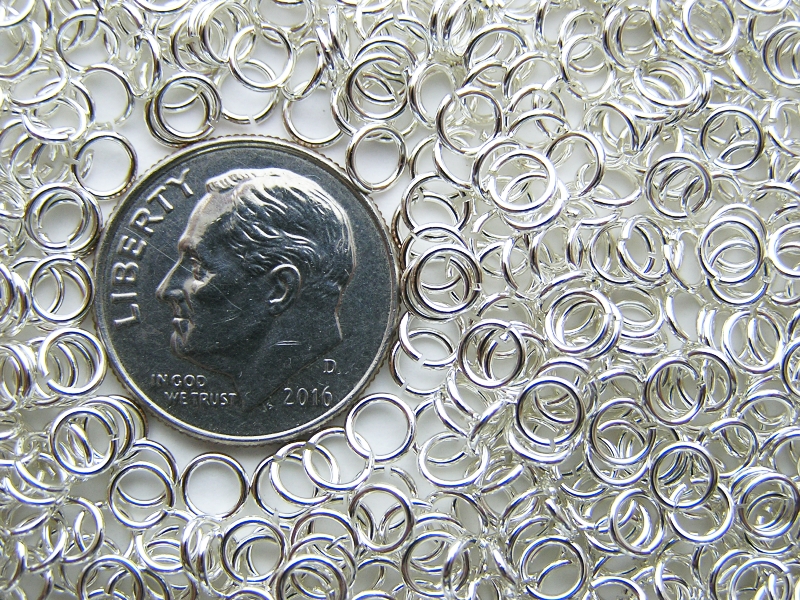

TITLE: 22AWG 7/64"
ACTUAL MANDREL DIAMETER: 0.108" (2.74mm) ACTUAL ID: 0.113" (2.87mm) ACTUAL WD: 0.025" (0.64mm) AR: 4.52 RINGS/OZ: 781 OZ/50 RINGS: 0.064 SPRINGBACK: 0.005" (0.13mm) |
