| 20AWG TITANIUM ROUND WIRE SAW CUT RINGS | |
|
GRADE 1 COMMERCIALLY PURE TITANIUM. GRADE 1 TITANIUM RINGS ARE MUCH EASIER TO BEND COMPARED TO GRADE 5
TITANIUM RINGS. 0.01" (0.25mm) KERF. TUMBLED FOR A MINIMUM OF 24 HOURS. TOLERANCE MARGIN OF ERROR 0.002" (0.05mm).
LOOSE RINGS SOLD PER 1 OZ. WELDED RINGS ARE SOLD PER RING. IF THERE IS NOT A PICTURE, I HAVEN'T CUT THEM YET AND
THE SIZES ARE PROJECTED.
CLICK HERE FOR GOOGLE DOC SPREADSHEET OF ALL INFORMATION ON THIS PAGE. CHOOSE THE SIZE RING SIZE YOU WANT, CLICK ON "ADD TO CART," AND THEN ADJUST QUANTITIES IN THE PAYPAL SHOPPING CART. *UNDERSTANDING THE DIFFERENCE BETWEEN RIGHT AND LEFT HANDED RINGS. |
|
|
TITLE: 20AWG 0.092"
ACTUAL MANDREL DIAMETER: 0.092" (2.34mm) ACTUAL ID: 0.095" (2.41mm) ACTUAL WD: 0.031" (0.79mm) ACTUAL OD: 0.157" (3.59mm) AR: 3.06 RINGS/OZ: 1315 RINGS/LBS: 21040 OZ/50 RINGS: 0.038 SPRINGBACK: 0.003" (0.08mm) |
|

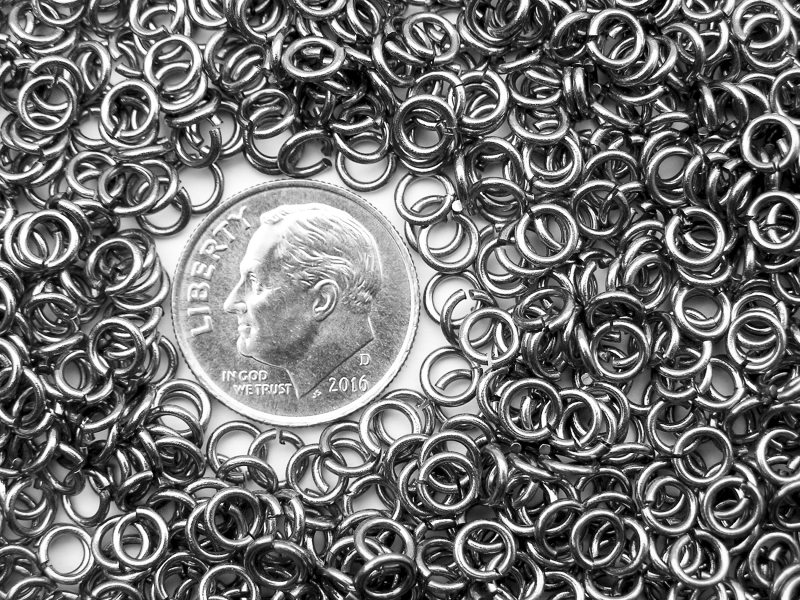

TITLE: 20AWG 7/64"
ACTUAL MANDREL DIAMETER: 0.110" (2.79mm) ACTUAL ID: 0.116" (2.95mm) ACTUAL WD: 0.0315" (0.80mm) ACTUAL OD: 0.179" (4.55mm) AR: 3.68 RINGS/OZ: 1111 RINGS/LBS: 17776 OZ/50 RINGS: 0.045 SPRINGBACK: 0.006" (0.15mm) |
|
TITLE: 20AWG 0.135"
ACTUAL MANDREL DIAMETER: 0.135" (3.43mm) ACTUAL ID: 0.143" (3.63mm) ACTUAL WD: 0.0315" (0.80mm) ACTUAL OD: 0.206" (5.23mm) AR: 4.54 RINGS/OZ: 943 RINGS/LBS: 15088 OZ/50 RINGS: 0.053 SPRINGBACK: 0.008" (0.2mm) |
