  20AWG BRASS ROUND WIRE SAW CUT RINGS

pic




ALL RINGS ON THIS PAGE: JEWELERS BRASS / 1 OZ MINIMUM PURCHASE / 0.008"(0.25mm) KERF / TUMBLED FOR A MINIMUM OF 1 HOUR / TOLERANCE MARGIN OF ERROR 0.002" (0.05mm). NO WELDED RINGS ARE AVAILABLE. IF THERE IS NOT A PICTURE, I HAVEN'T CUT THE RINGS YET AND THE SIZES ARE ESTIMATED.
CLICK HERE FOR GOOGLE DOC SPREADSHEET OF ALL INFORMATION ON THIS PAGE.
CHOOSE THE SIZE RING SIZE YOU WANT, CLICK ON "ADD TO CART," AND THEN ADJUST THE # OF OZ IN THE PAYPAL SHOPPING CART.
*UNDERSTANDING THE DIFFERENCE BETWEEN RIGHT AND LEFT HANDED RINGS.

TITLE: 20AWG 3/32"

ACTUAL MANDREL DIAMETER: 0.091" (2.31mm)

ACTUAL ID: 0.096" (2.44mm)

ACTUAL WD: 0.032" (0.81mm)

AR: 3.00

RINGS/OZ: 632

OZ/50 RINGS: 0.079

SPRINGBACK: 0.002" (0.05mm)



RETAIL OPTIONS


WHOLESALE OPTIONS


TITLE: 20AWG 1/8"

ACTUAL MANDREL DIAMETER: 0.126" (3.2mm)

ACTUAL ID: 0.129" (3.28mm)

ACTUAL WD: 0.031" (0.79mm)

AR: 4.16

RINGS/OZ: 526

OZ/50 RINGS: 0.095

SPRINGBACK: 0.003" (0.08mm)



RETAIL OPTIONS


WHOLESALE OPTIONS

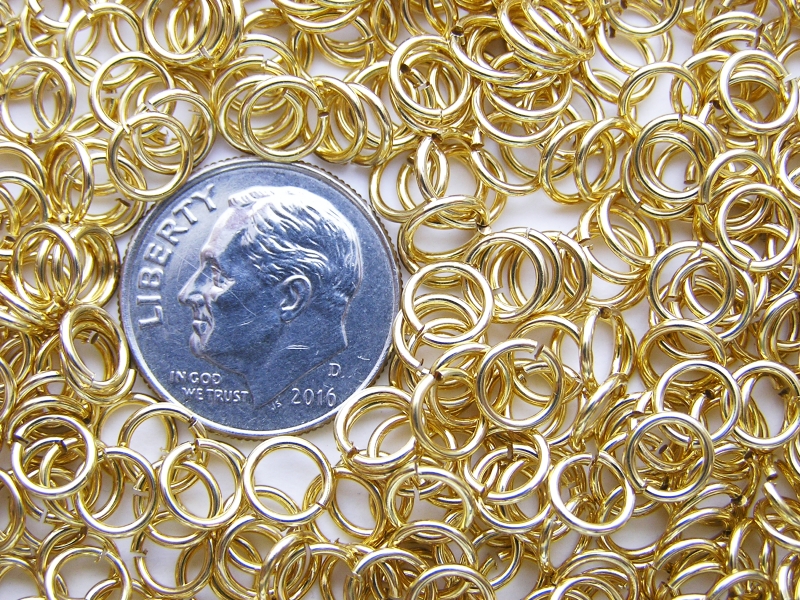

TITLE: 20AWG 5/32"

ACTUAL MANDREL DIAMETER: 0.157" (3.99mm)

ACTUAL ID: 0.161" (4.09mm)

ACTUAL WD: 0.032" (0.81mm)

AR: 5.03

RINGS/OZ: 427

OZ/50 RINGS: 0.117

SPRINGBACK: 0.004" (0.1mm)



RETAIL OPTIONS


WHOLESALE OPTIONS
