| 19SWG BRASS ROUND WIRE SAW CUT RINGS | |
|
ALL RINGS ON THIS PAGE: JEWELERS BRASS / 1 OZ MINIMUM PURCHASE / 0.008"(0.25mm) KERF / TUMBLED FOR A MINIMUM
OF 1 HOUR / TOLERANCE MARGIN OF ERROR 0.002" (0.05mm). NO WELDED RINGS ARE AVAILABLE. IF THERE IS NOT A PICTURE,
I HAVEN'T CUT THE RINGS YET AND THE SIZES ARE ESTIMATED.
CLICK HERE FOR GOOGLE DOC SPREADSHEET OF ALL INFORMATION ON THIS PAGE. CHOOSE THE SIZE RING SIZE YOU WANT, CLICK ON "ADD TO CART," AND THEN ADJUST THE # OF OZ IN THE PAYPAL SHOPPING CART. *UNDERSTANDING THE DIFFERENCE BETWEEN RIGHT AND LEFT HANDED RINGS. |
|
|
TITLE: 13/128" 19SWG
ACTUAL MANDREL DIAMETER: 0.101" (2.57mm) ACTUAL ID: 0.102" (2.59mm) ACTUAL WD: 0.04" (1.02mm) ACTUAL OD: 0.182" (4.62mm) AR: 2.55 RINGS/OZ: 375 RINGS/LB: 6000 OZ/50 RINGS: 0.133 SPRINGBACK: 0.001" (0.03mm) |
|

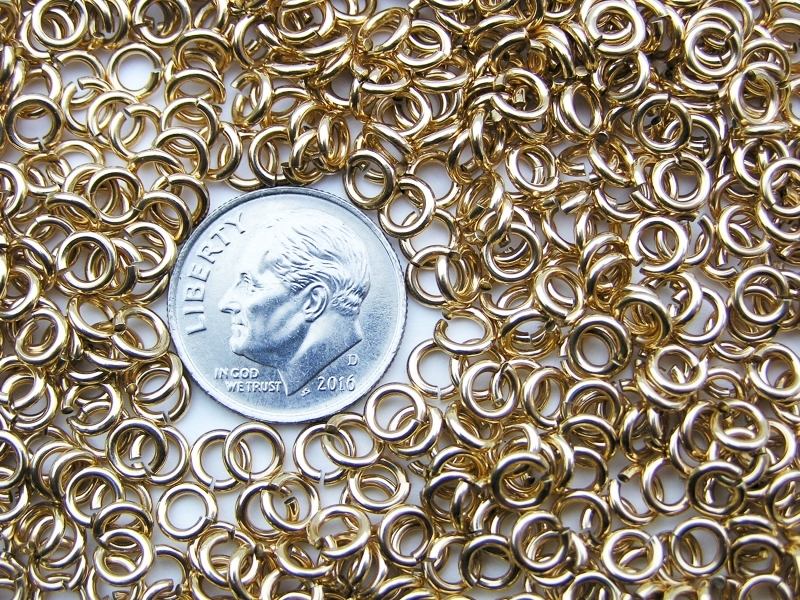

TITLE: 19SWG .106"
ACTUAL MANDREL DIAMETER: 0.106" (2.69mm) ACTUAL ID: 0.108" (2.74mm) ACTUAL WD: 0.040" (1.02mm) ACTUAL OD: 0.188" (4.78mm) AR: 2.70 RINGS/OZ: 359 RINGS/LB: 5744 OZ/50 RINGS: 0.139 SPRINGBACK: 0.002" (0.05mm) |
