| 16SWG COPPER ROUND WIRE SAW CUT RINGS | |
|
ALL RINGS ON THIS PAGE: COPPER / 1 OZ MINIMUM PURCHASE / 0.008" (0.25mm) KERF / TUMBLED FOR A MINIMUM OF 1
HOUR / TOLERANCE MARGIN OF ERROR 0.002" (0.05mm). NO WELDED RINGS ARE AVAILABLE. IF THERE IS NOT A PICTURE,
I HAVEN'T CUT THE RINGS YET AND THE SIZES ARE ESTIMATED.
CLICK HERE FOR GOOGLE DOC SPREADSHEET OF ALL INFORMATION ON THIS PAGE. CHOOSE THE SIZE RING SIZE YOU WANT, CLICK ON "ADD TO CART," AND THEN ADJUST THE # OF OZ IN THE PAYPAL SHOPPING CART. *UNDERSTANDING THE DIFFERENCE BETWEEN RIGHT AND LEFT HANDED RINGS. |
|
|
TITLE: 16SWG 3/16"
ACTUAL MANDREL DIAMETER: 0.188" (4.78mm) ACTUAL ID: 0.189" (4.8mm) ACTUAL WD: 0.063" (1.6mm) AR: 3.0 RINGS/OZ: 82 OZ/50 RINGS: 0.608 SPRINGBACK: 0.001" (0.03mm) |
|

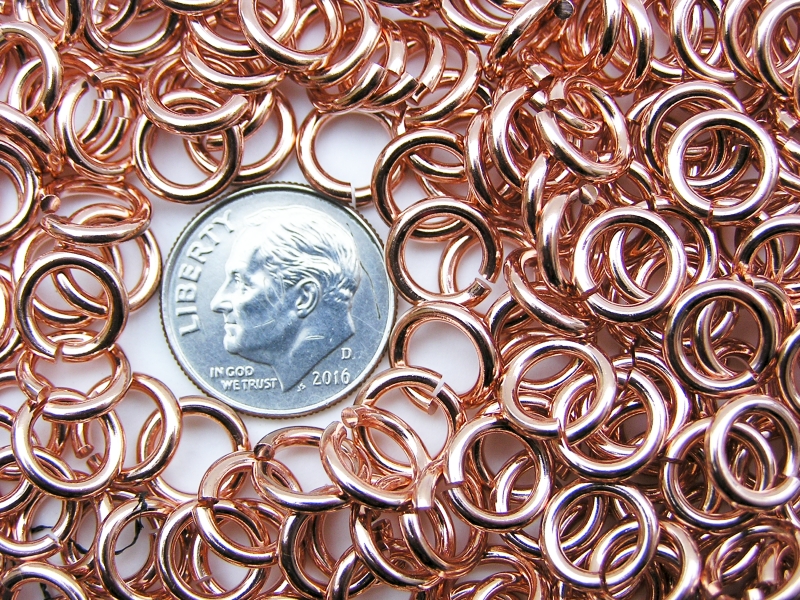

TITLE: 16SWG 7/32"
ACTUAL MANDREL DIAMETER: 0.219" (5.56mm) ACTUAL ID: 0.222" (5.64mm) ACTUAL WD: 0.0625" (1.59mm) ACTUAL OD: 0.347" (8.81mm) AR: 3.55 RINGS/OZ: 72 RINGS/LBS: 1152 OZ/50 RINGS: 0.689 SPRINGBACK: 0.003" (0.08mm) |
|

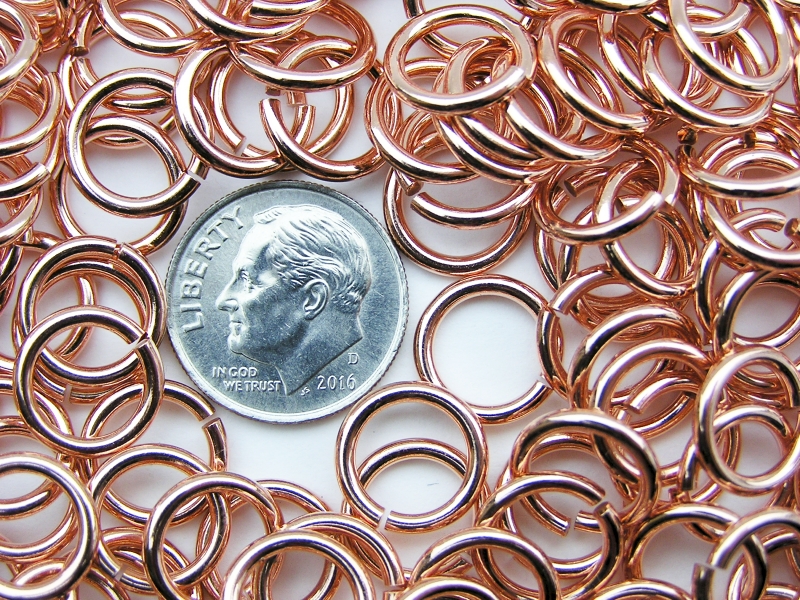

TITLE: 16SWG 39/128"
ACTUAL MANDREL DIAMETER: 0.303" (7.70mm) ACTUAL ID: 0.311" (7.90mm) ACTUAL WD: 0.062" (1.57mm) ACTUAL OD: 0.435" (11.05mm) AR: 5.02 RINGS/OZ: 55 RINGS/LBS: 880 OZ/50 RINGS: 0.897 SPRINGBACK: 0.008" (0.20mm) |
|

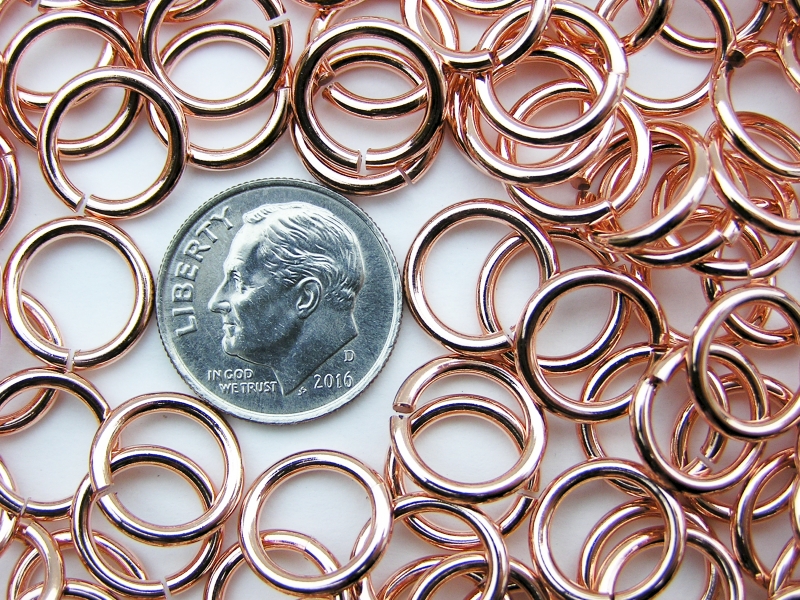

TITLE: 16SWG 5/16"
ACTUAL MANDREL DIAMETER: 0.313" (7.95mm) ACTUAL ID: 0.321" (8.15mm) ACTUAL WD: 0.063" (1.60mm) ACTUAL OD: 0.447" (11.35mm) AR: 5.10 RINGS/OZ: 52 RINGS/LBS: 832 OZ/50 RINGS: 0.949 SPRINGBACK: 0.008" (0.20mm) |
|
TITLE: 16SWG 7/16"
ACTUAL MANDREL DIAMETER: 0.438" (11.13mm) ACTUAL ID: 0.453" (11.51mm) ACTUAL WD: 0.0625" (1.59mm) AR: 7.25 RINGS/OZ: 39 OZ/50 RINGS: 1.278 SPRINGBACK: 0.015" (0.38mm) |
