| 16SWG BRASS ROUND WIRE SAW CUT RINGS | |
|
ALL RINGS ON THIS PAGE: JEWELERS BRASS / 1 OZ MINIMUM PURCHASE / 0.008"(0.25mm) KERF / TUMBLED FOR A MINIMUM
OF 1 HOUR / TOLERANCE MARGIN OF ERROR 0.002" (0.05mm). NO WELDED RINGS ARE AVAILABLE. IF THERE IS NOT A PICTURE,
I HAVEN'T CUT THE RINGS YET AND THE SIZES ARE ESTIMATED.
CLICK HERE FOR GOOGLE DOC SPREADSHEET OF ALL INFORMATION ON THIS PAGE. CHOOSE THE SIZE RING SIZE YOU WANT, CLICK ON "ADD TO CART," AND THEN ADJUST THE # OF OZ IN THE PAYPAL SHOPPING CART. *UNDERSTANDING THE DIFFERENCE BETWEEN RIGHT AND LEFT HANDED RINGS. |
|
|

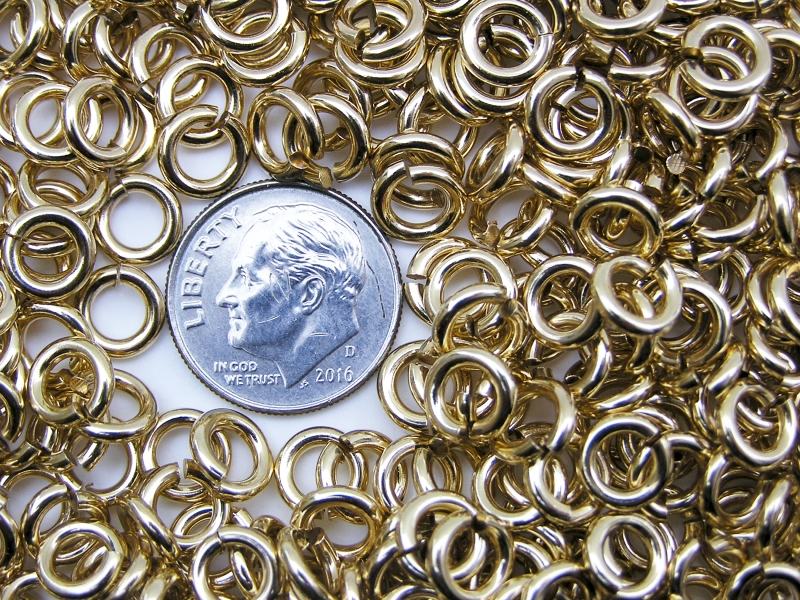

TITLE: 16SWG 5/32"
ACTUAL MANDREL DIAMETER: 0.157" (3.99mm) ACTUAL ID: 0.16" (4.06mm) ACTUAL WD: 0.062" (1.57mm) ACTUAL OD: 0.284" (7.21mm) AR: 2.58 RINGS/OZ: 97 RINGS/LBS: 1552 OZ/50 RINGS: 0.513 SPRINGBACK: 0.003" (0.08mm) |
|

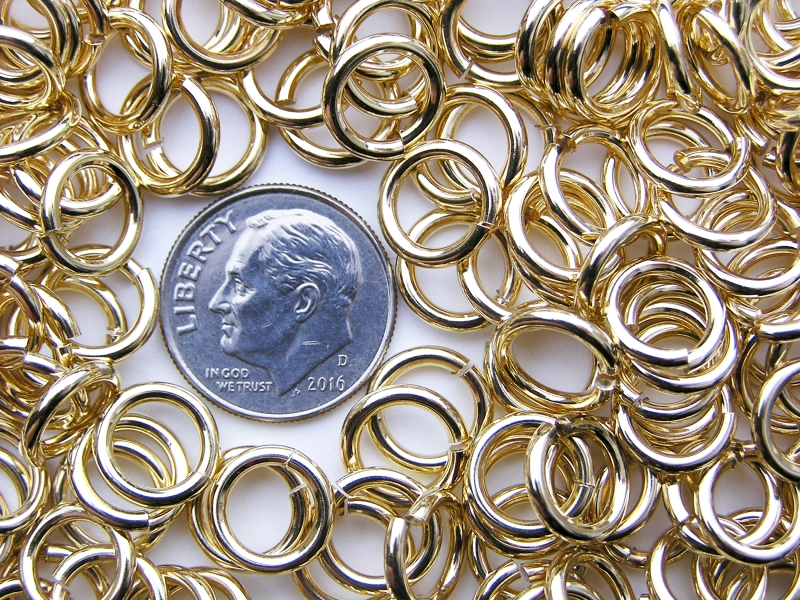

TITLE: 16SWG 1/4"
ACTUAL MANDREL DIAMETER: 0.25" (6.35mm) ACTUAL ID: 0.256" (6.5mm) ACTUAL WD: 0.062" (1.57mm) AR: 4.13 RINGS/OZ: 67 OZ/50 RINGS: 0.746 SPRINGBACK: 0.006" (0.15mm) |
|
TITLE: 16SWG 5/16"
ACTUAL MANDREL DIAMETER: 0.312" (7.92mm) ACTUAL ID: 0.322" (8.18mm) ACTUAL WD: 0.062" (1.57mm) AR: 5.19 RINGS/OZ: 55 OZ/50 RINGS: 0.907 SPRINGBACK: 0.009" (0.23mm) |
|

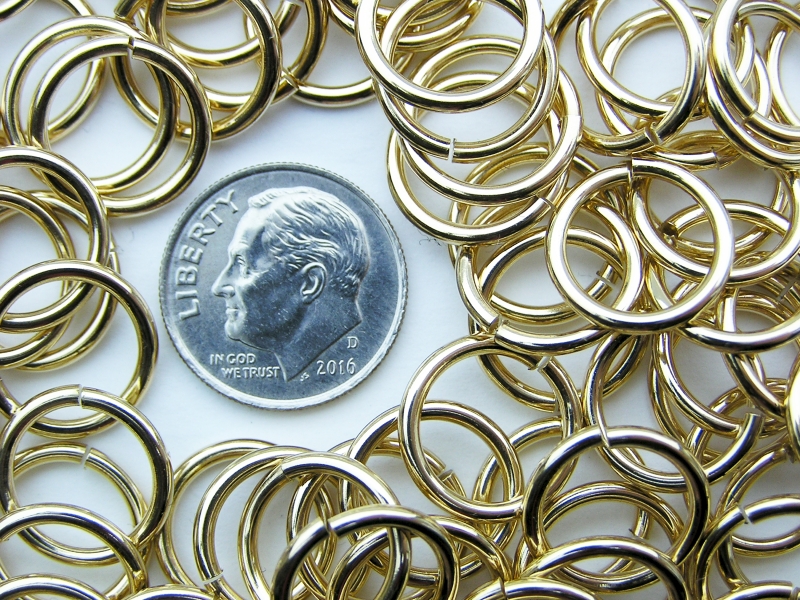

TITLE: 16SWG 49/128"
ACTUAL MANDREL DIAMETER: 0.386" (9.80mm) ACTUAL ID: 0.405" (10.29mm) ACTUAL WD: 0.061" (1.55mm) ACTUAL OD: 0.527" (13.39mm) AR: 6.64 RINGS/OZ: 46 RINGS/LBS: 736 OZ/50 RINGS: 1.070 SPRINGBACK: 0.019" (0.48mm) |
