| 16AWG TITANIUM GRADE 1 SAW CUT RINGS | |
|
GRADE 1 COMMERCIALLY PURE TITANIUM. GRADE 1 TITANIUM RINGS ARE MUCH EASIER TO BEND COMPARED TO GRADE 5
TITANIUM RINGS. 0.01" (0.25mm) KERF. TUMBLED FOR A MINIMUM OF 24 HOURS. TOLERANCE MARGIN OF ERROR 0.002" (0.05mm).
LOOSE RINGS SOLD PER 1 OZ. WELDED RINGS ARE SOLD PER RING. IF THERE IS NOT A PICTURE, I HAVEN'T CUT THEM YET AND
THE SIZES ARE PROJECTED.
CLICK HERE FOR GOOGLE DOC SPREADSHEET OF ALL INFORMATION ON THIS PAGE. CHOOSE THE SIZE RING SIZE YOU WANT, CLICK ON "ADD TO CART," AND THEN ADJUST QUANTITIES IN THE PAYPAL SHOPPING CART. *UNDERSTANDING THE DIFFERENCE BETWEEN RIGHT AND LEFT HANDED RINGS. |
|
|
TITLE: 16AWG 1/8"
ACTUAL MANDREL DIAMETER: 0.126" (3.2mm) ACTUAL ID: 0.131" (3.33mm) ACTUAL WD: 0.05" (1.27mm) AR: 2.62 RINGS/OZ: 344 OZ/50 RINGS: 0.141 SPRINGBACK: 0.005" (0.13mm) |
|

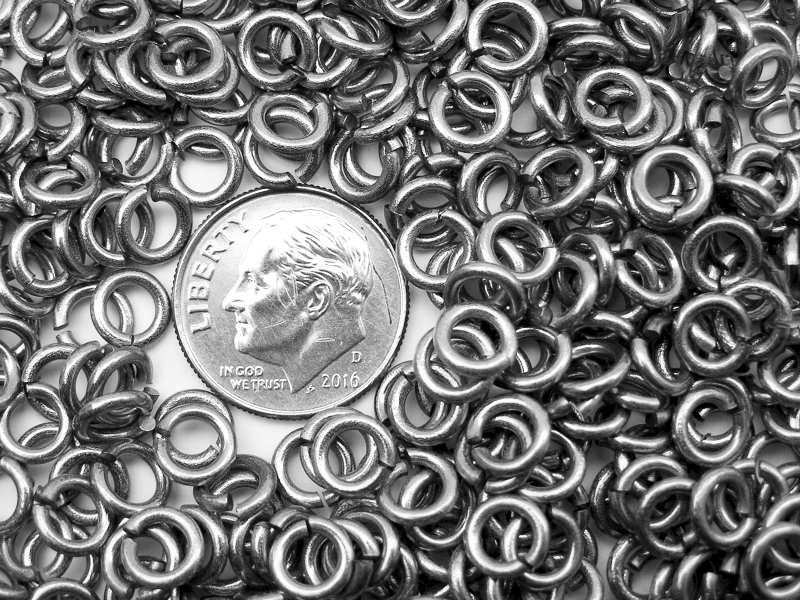

TITLE: 16AWG 9/64"
ACTUAL MANDREL DIAMETER: 0.141" (3.58mm) ACTUAL ID: 0.148" (3.76mm) ACTUAL WD: 0.050" (1.27mm) ACTUAL OD: 0.248" (6.30mm) AR: 2.96 RINGS/OZ: 324 RINGS/LBS: 5184 OZ/50 RINGS: 0.154 SPRINGBACK: 0.007" (0.18mm) |
|

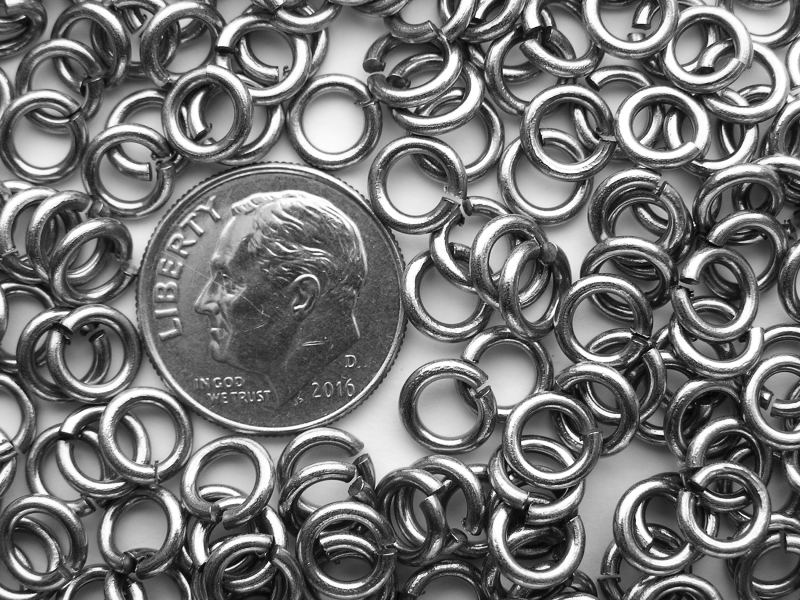

TITLE: 16AWG 19/128"
ACTUAL MANDREL DIAMETER: 0.149" (3.78mm) ACTUAL ID: 0.154" (3.91mm) ACTUAL WD: 0.05" (1.27mm) AR: 3.08 RINGS/OZ: 312 OZ/50 RINGS: 0.16 SPRINGBACK: 0.005" (0.13mm) |
|

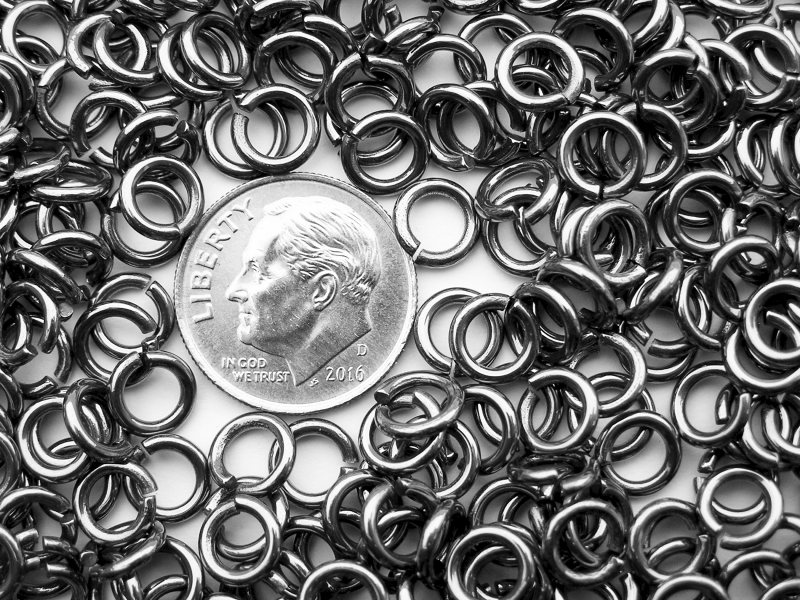

TITLE: 16AWG 5/32"
ACTUAL MANDREL DIAMETER: 0.156" (3.96mm) ACTUAL ID: 0.164" (4.17mm) ACTUAL WD: 0.0495" (1.26mm) ACTUAL OD: 0.263" (6.68mm) AR: 3.31 RINGS/OZ: 306 RINGS/LBS: 4896 OZ/50 RINGS: 0.163 SPRINGBACK: 0.008" (0.20mm) |
|

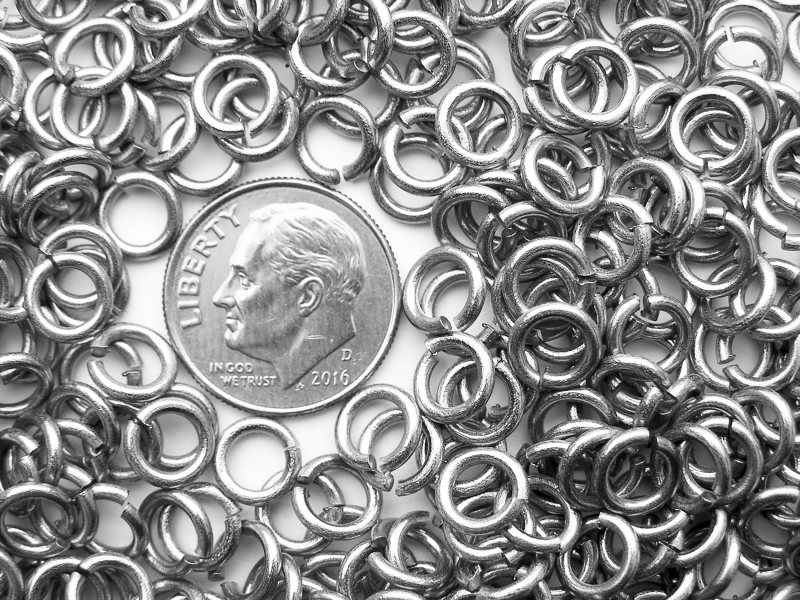

TITLE: 16AWG 21/128"
ACTUAL MANDREL DIAMETER: 0.164" (4.17mm) ACTUAL ID: 0.17" (4.32mm) ACTUAL WD: 0.049" (1.24mm) ACTUAL OD: 0.268" (6.81mm) AR: 3.47 RINGS/OZ: 303 RINGS/LBS: 4848 OZ/50 RINGS: 0.165 SPRINGBACK: 0.006" (0.15mm) |
|

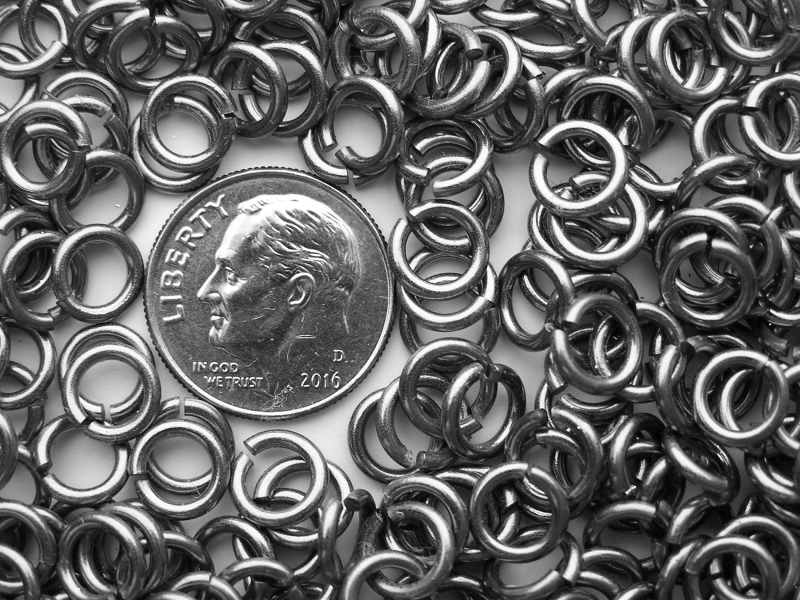

TITLE: 16AWG 11/64"
ACTUAL MANDREL DIAMETER: 0.172" (4.37mm) ACTUAL ID: 0.179" (4.55mm) ACTUAL WD: 0.0485" (1.23mm) ACTUAL OD: 0.276" (7.01mm) AR: 3.69 RINGS/OZ: 299 RINGS/LBS: 4784 OZ/50 RINGS: 0.167 SPRINGBACK: 0.007" (0.18mm) |
|

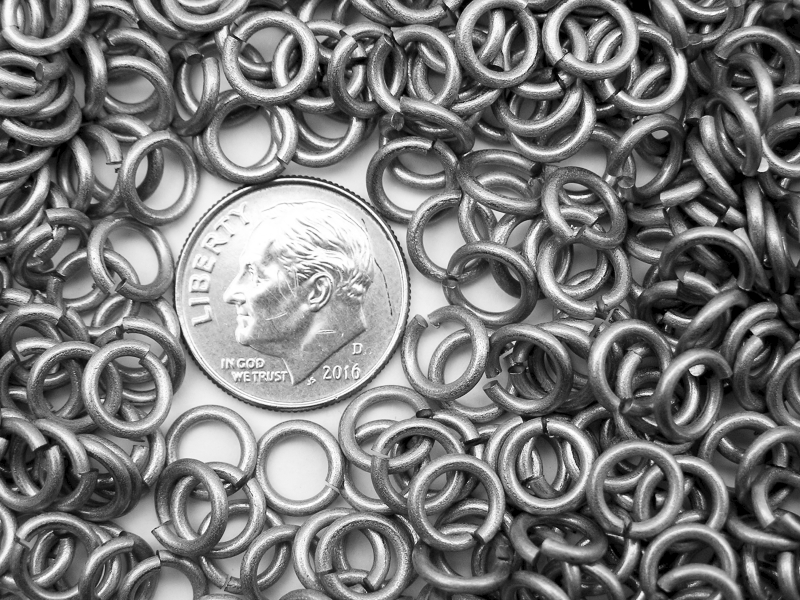

TITLE: 16AWG 23/128"
ACTUAL MANDREL DIAMETER: 0.179" (4.55mm) ACTUAL ID: 0.186" (4.72mm) ACTUAL WD: 0.0495" (1.26mm) ACTUAL OD: 0.285" (7.24mm) AR: 3.76 RINGS/OZ: 279 RINGS/LBS: 4464 OZ/50 RINGS: 0.179 SPRINGBACK: 0.007" (0.18mm) |
|
TITLE: 16AWG 3/16"
ACTUAL MANDREL DIAMETER: 0.188" (4.78mm) ACTUAL ID: 0.197" (5.00mm) ACTUAL WD: 0.050" (1.27mm) ACTUAL OD: 0.297" (7.54mm) AR: 3.94 RINGS/OZ: 260 RINGS/LBS: 4160 OZ/50 RINGS: 0.192 SPRINGBACK: 0.009" (0.23mm) |
|
TITLE: 16AWG 13/64"
ACTUAL MANDREL DIAMETER: 0.203" (5.16mm) ACTUAL ID: 0.213" (5.41mm) ACTUAL WD: 0.05" (1.27mm) ACTUAL OD: 0.313" (7.95mm) AR: 4.26 RINGS/OZ: 245 RINGS/LBS: 3920 OZ/50 RINGS: 0.204 SPRINGBACK: 0.01" (0.25mm) |
|

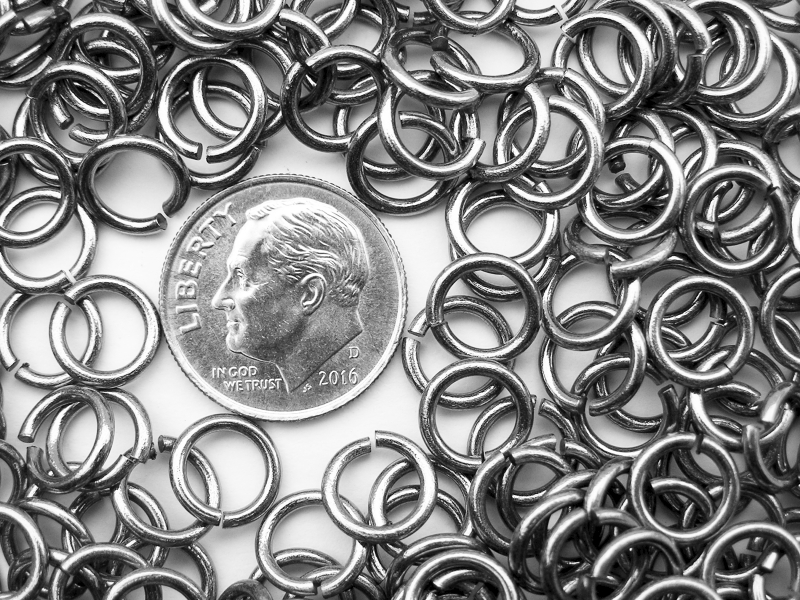

TITLE: 16AWG 27/128"
ACTUAL MANDREL DIAMETER: 0.212" (5.38mm) ACTUAL ID: 0.225" (5.72mm) ACTUAL WD: 0.050" (1.27mm) ACTUAL OD: 0.325" (8.26mm) AR: 4.50 RINGS/OZ: 231 RINGS/LBS: 3696 OZ/50 RINGS: 0.216 SPRINGBACK: 0.013" (0.33mm) |
|

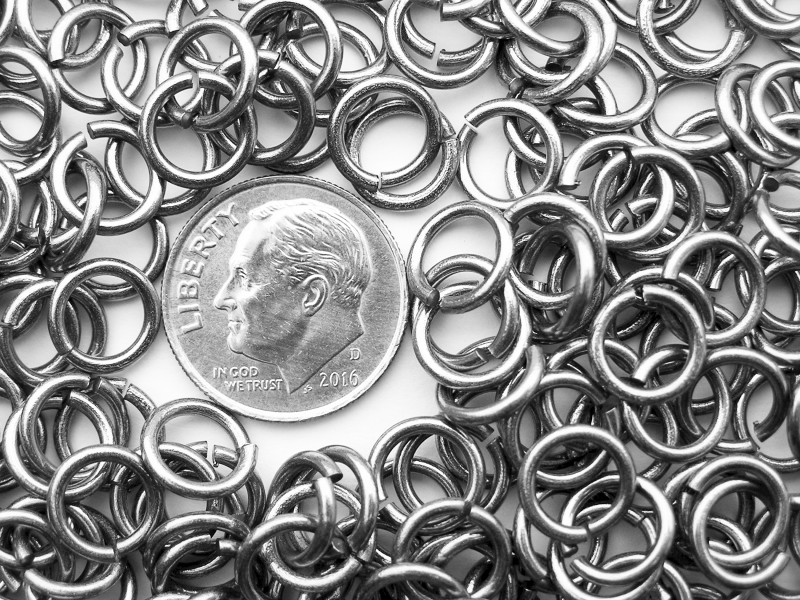

TITLE: 16AWG 7/32"
ACTUAL MANDREL DIAMETER: 0.219" (5.56mm) ACTUAL ID: 0.233" (5.92mm) ACTUAL WD: 0.050" (1.27mm) ACTUAL OD: 0.333" (8.46mm) AR: 4.66 RINGS/OZ: 225 RINGS/LBS: 3600 OZ/50 RINGS: 0.222 SPRINGBACK: 0.014" (0.36mm) |
|
TITLE: 16AWG 15/64"
ACTUAL MANDREL DIAMETER: 0.235" (5.94mm) ACTUAL ID: 0.250" (6.35mm) ACTUAL WD: 0.0495" (1.26mm) ACTUAL OD: 0.349" (8.86mm) AR: 5.05 RINGS/OZ: 216 RINGS/LBS: 3456 OZ/50 RINGS: 0.231 SPRINGBACK: 0.016" (0.41mm) |
|

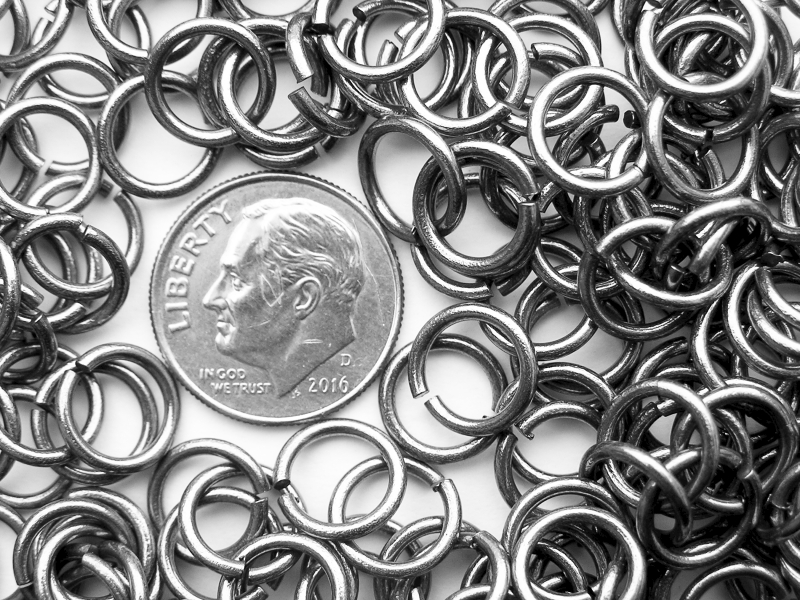

TITLE: 16AWG 1/4"
ACTUAL MANDREL DIAMETER: 0.25" (6.35mm) ACTUAL ID: 0.262" (6.65mm) ACTUAL WD: 0.05" (1.27mm) ACTUAL OD: 0.362" (9.19mm) AR: 5.24 RINGS/OZ: 210 RINGS/LBS: 3360 OZ/50 RINGS: 0.237 SPRINGBACK: 0.012" (0.3mm) |
|

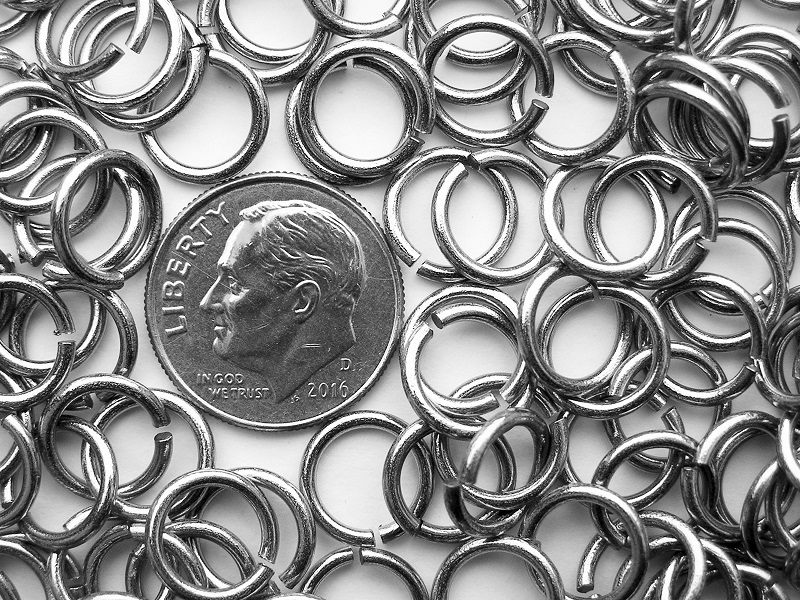

TITLE: 16AWG 33/128"
ACTUAL MANDREL DIAMETER: 0.281" (7.14mm) ACTUAL ID: 0.258" (6.55mm) ACTUAL WD: 0.05" (1.27mm) AR: 5.42 RINGS/OZ: 198 OZ/50 RINGS: 0.252 SPRINGBACK: 0.013" (0.33mm) |
|

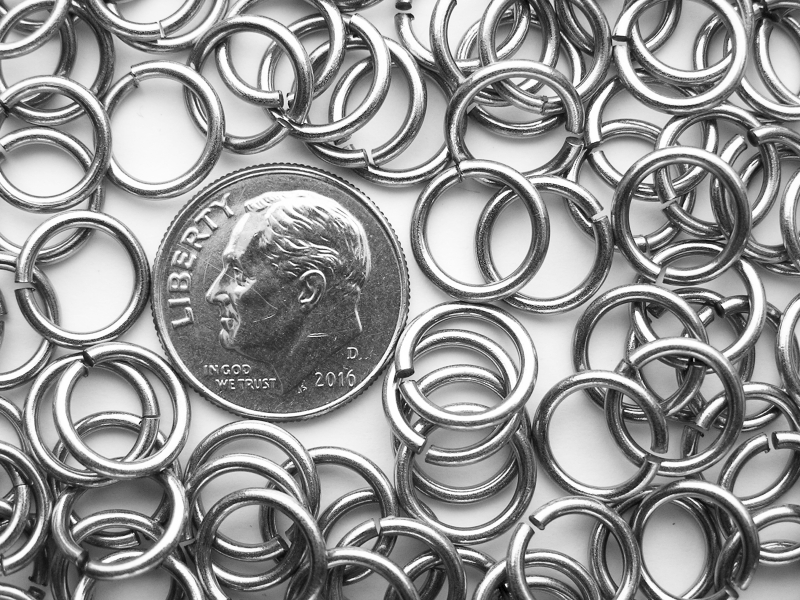

TITLE: 16AWG 17/64"
ACTUAL MANDREL DIAMETER: 0.266" (6.76mm) ACTUAL ID: 0.28" (7.11mm) ACTUAL WD: 0.05" (1.27mm) ACTUAL OD: 0.38" (9.65mm) AR: 5.60 RINGS/OZ: 196 RINGS/LBS: 3136 OZ/50 RINGS: 0.255 SPRINGBACK: 0.014" (0.36mm) |
|

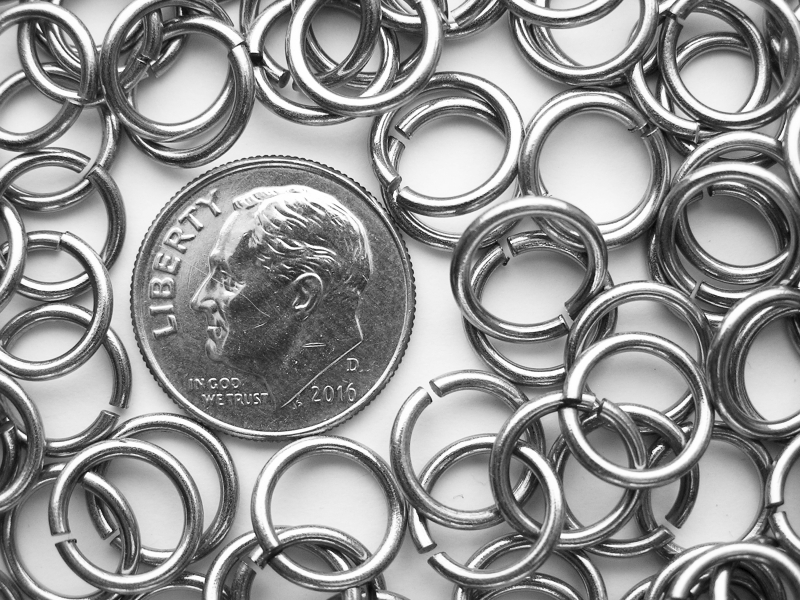

TITLE: 16AWG 35/128"
ACTUAL MANDREL DIAMETER: 0.271" (6.88mm) ACTUAL ID: 0.287" (7.29mm) ACTUAL WD: 0.05" (1.27mm) AR: 5.74 RINGS/OZ: 191 OZ/50 RINGS: 0.261 SPRINGBACK: 0.016" (0.41mm) |
|
TITLE: 16AWG 9/32"
ACTUAL MANDREL DIAMETER: 0.281" (7.14mm) ACTUAL ID: 0.294" (7.47mm) ACTUAL WD: 0.05" (1.27mm) AR: 5.88 RINGS/OZ: 186 OZ/50 RINGS: 0.268 SPRINGBACK: 0.013" (0.33mm) |
|

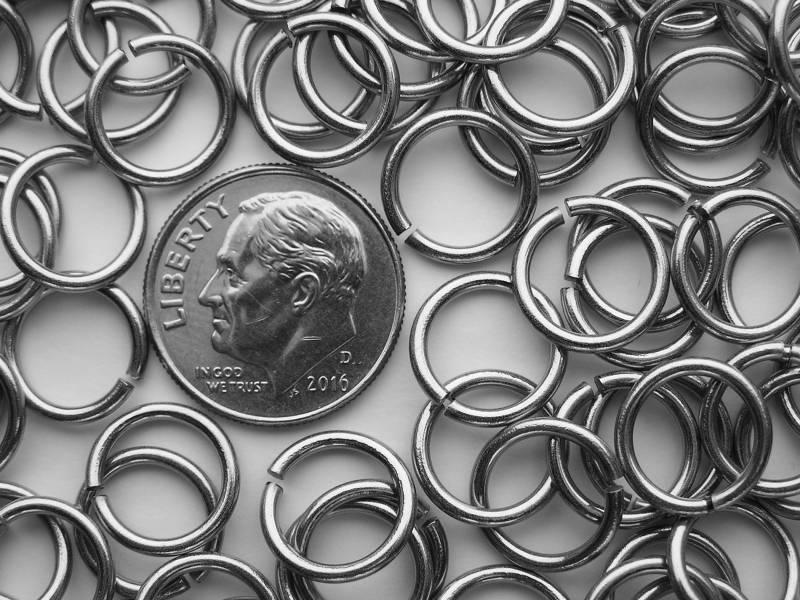

TITLE: 16AWG 19/64"
ACTUAL MANDREL DIAMETER: 0.298" (7.57mm) ACTUAL ID: 0.317" (8.05mm) ACTUAL WD: 0.051" (1.3mm) AR: 6.22 RINGS/OZ: 168 OZ/50 RINGS: 0.296 SPRINGBACK: 0.019" (0.48mm) |
|

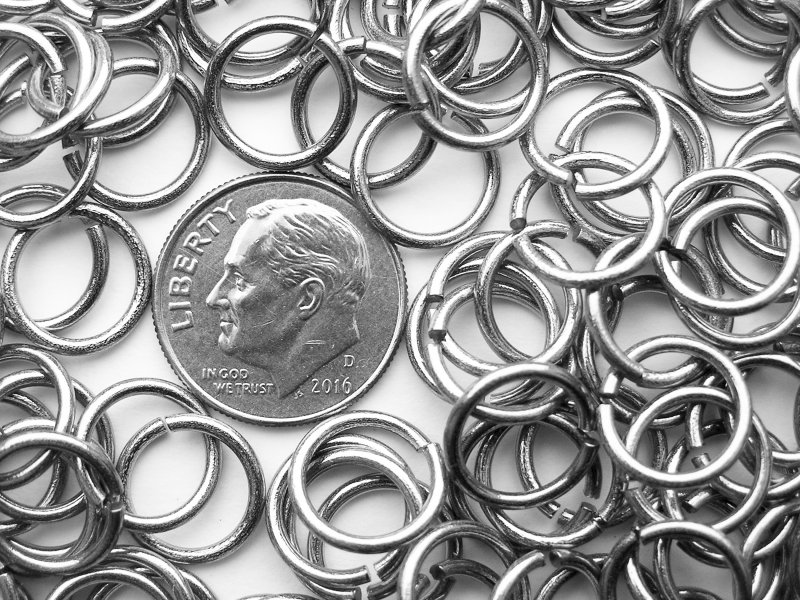

TITLE: 16AWG 5/16"
ACTUAL MANDREL DIAMETER: 0.312" (7.92mm) ACTUAL ID: 0.327" (8.31mm) ACTUAL WD: 0.0495" (1.26mm) AR: 6.61 RINGS/OZ: 174 OZ/50 RINGS: 0.287 SPRINGBACK: 0.015" (0.38mm) |
|

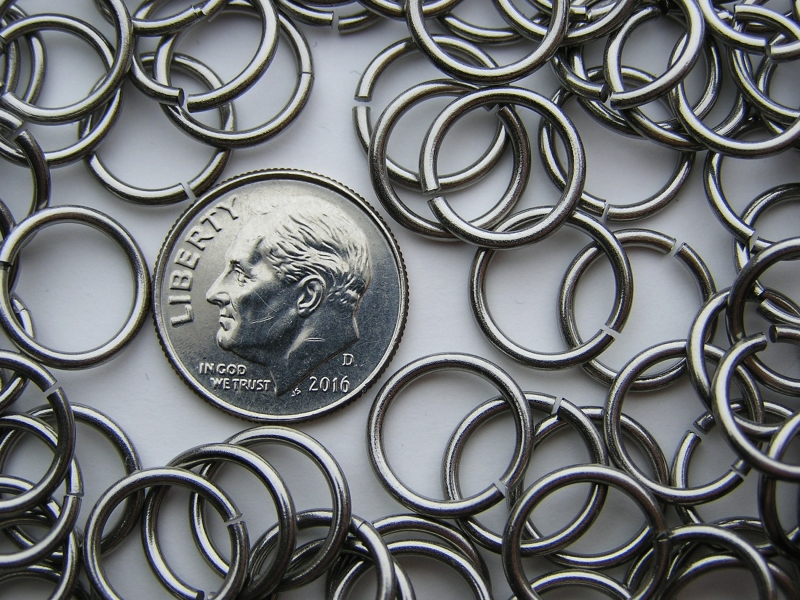

TITLE: 16AWG 21/64"
ACTUAL MANDREL DIAMETER: 0.33" (8.38mm) ACTUAL ID: 0.352" (8.94mm) ACTUAL WD: 0.051" (1.3mm) AR: 6.90 RINGS/OZ: 153 OZ/50 RINGS: 0.325 SPRINGBACK: 0.022" (0.56mm) |
|

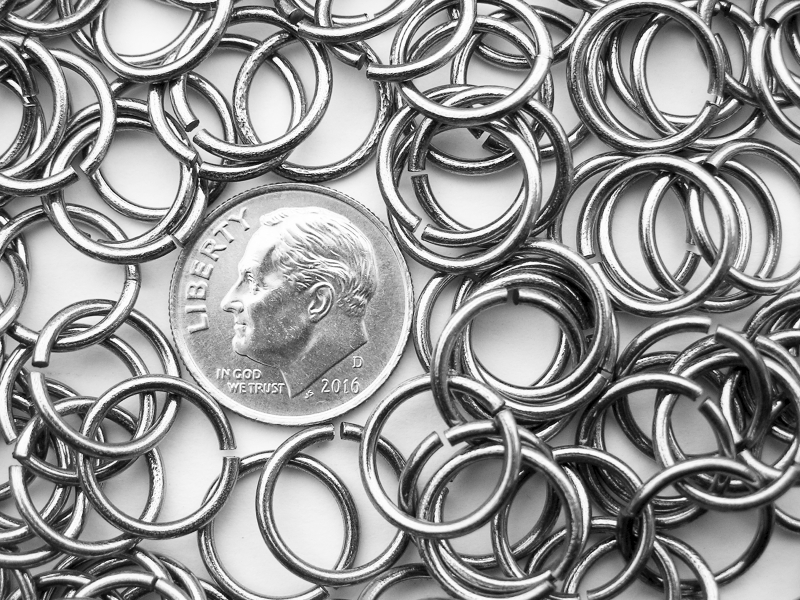

TITLE: 16AWG 11/32"
ACTUAL MANDREL DIAMETER: 0.344" (8.74mm) ACTUAL ID: 0.369" (9.37mm) ACTUAL WD: 0.050" (1.27mm) ACTUAL OD: 0.469" (11.91mm) AR: 7.38 RINGS/OZ: 153 RINGS/LBS: 2448 OZ/50 RINGS: 0.325 SPRINGBACK: 0.025" (0.64mm) |
|

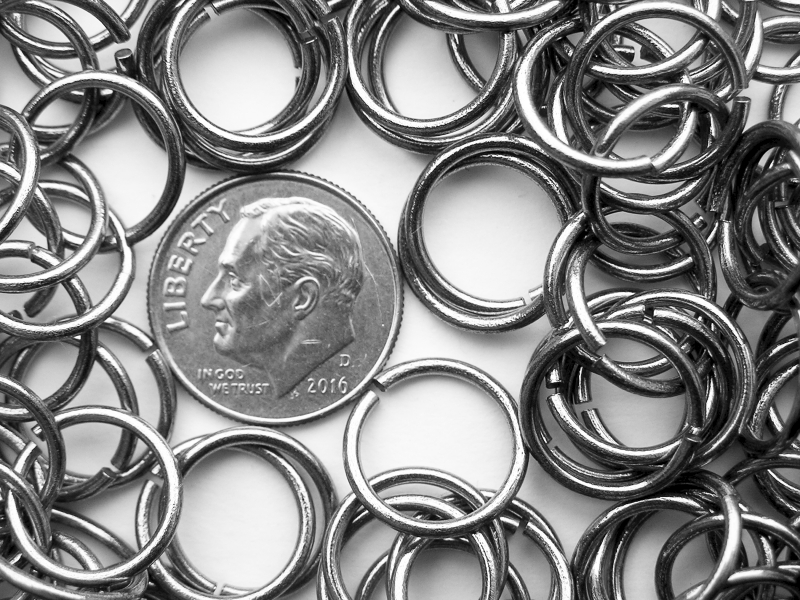

TITLE: 16AWG 3/8"
ACTUAL MANDREL DIAMETER: 0.375" (9.53mm) ACTUAL ID: 0.4" (10.16mm) ACTUAL WD: 0.05" (1.27mm) ACTUAL OD: 0.5" (12.7mm) AR: 8.00 RINGS/OZ: 145 RINGS/LBS: 2320 OZ/50 RINGS: 0.344 SPRINGBACK: 0.025" (0.64mm) |
|
TITLE: 16AWG 7/16"
ACTUAL MANDREL DIAMETER: 0.435" (11.05mm) ACTUAL ID: 0.482" (12.24mm) ACTUAL WD: 0.051" (1.3mm) AR: 9.45 RINGS/OZ: 113 OZ/50 RINGS: 0.439 SPRINGBACK: 0.047" (1.19mm) |
|
TITLE: 16AWG 31/64"
ACTUAL MANDREL DIAMETER: 0.485" (12.32mm) ACTUAL ID: 0.532" (13.51mm) ACTUAL WD: 0.05" (1.27mm) AR: 10.64 RINGS/OZ: 108 OZ/50 RINGS: 0.461 SPRINGBACK: 0.047" (1.19mm) |
