| 22AWG Argentium Silver Round Wire Saw Cut Jump Rings | |
|
ALL RINGS ON THIS PAGE: ARGENTIUM SILVER (93.5% SILVER) / 1 OZ MINIMUM PURCHASE / 0.008" (0.25mm) KERF / TUMBLED
FOR A MINIMUM OF 1 HOUR / TOLERANCE MARGIN OF ERROR 0.002" (0.05mm). NO WELDED RINGS ARE AVAILABLE. IF THERE IS
NOT A PICTURE, I HAVEN'T CUT THE RINGS YET AND THE SIZES ARE ESTIMATED. CLICK HERE FOR GOOGLE DOC SPREADSHEET OF ALL INFORMATION ON THIS PAGE. CHOOSE THE SIZE RING SIZE YOU WANT, CLICK ON "ADD TO CART," AND THEN ADJUST THE # OF OZ IN THE PAYPAL SHOPPING CART. *UNDERSTANDING THE DIFFERENCE BETWEEN RIGHT AND LEFT HANDED RINGS. NOTE: RINGS ARE SOLD AND MEASURED PER STANDARD OUNCE (28.35g) AND POUND (454g), NOT BY TROY WEIGHT |
|
|

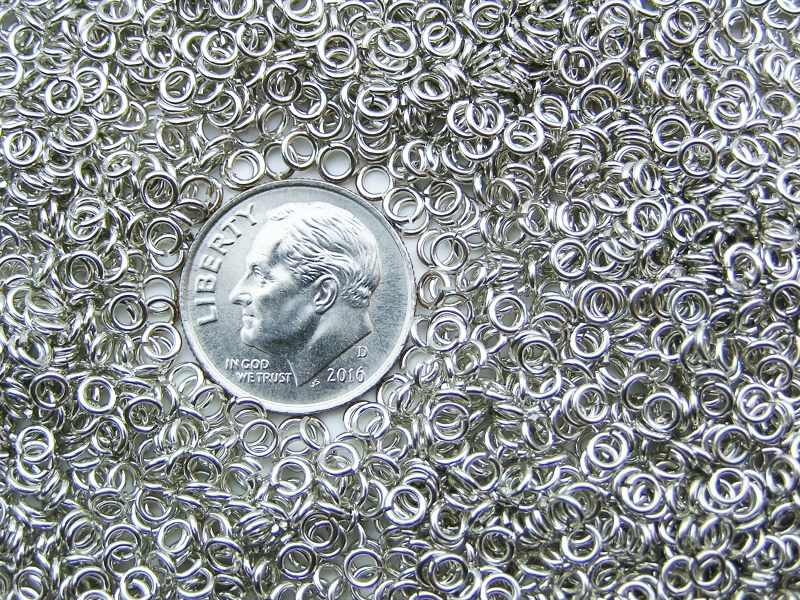

TITLE: 22AWG .072"
ACTUAL MANDREL DIAMETER: 0.072" (1.83mm) ACTUAL ID: 0.074" (1.88mm) ACTUAL WD: 0.025" (0.64mm) ACTUAL OD: 0.124" (3.15mm) AR: 2.96 RINGS/OZ: 1136 RINGS/LBS: 18176 OZ/50 RINGS: 0.044 SPRINGBACK: 0.002" (0.05mm) |
|

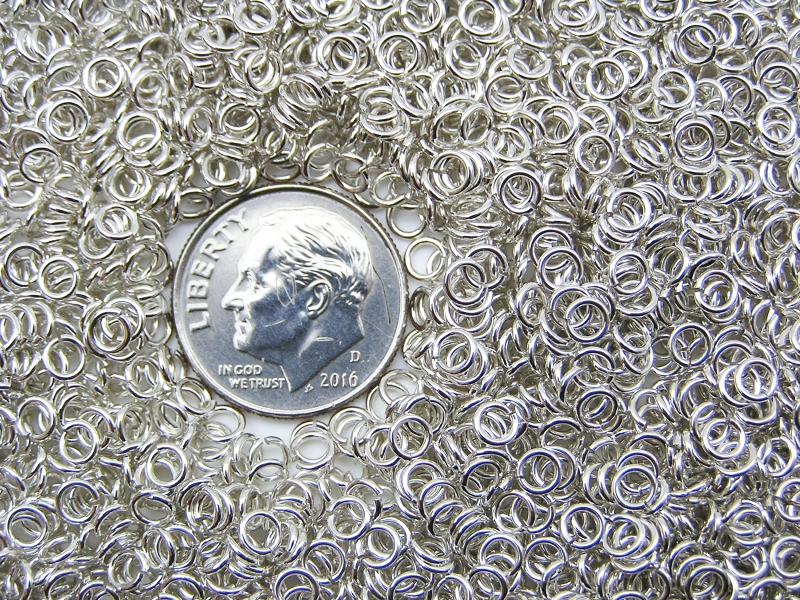

TITLE: 22AWG 11/128"
ACTUAL MANDREL DIAMETER: 0.085" (2.16mm) ACTUAL ID: 0.089" (2.26mm) ACTUAL WD: 0.025" (0.64mm) ACTUAL OD: 0.139" (3.53mm) AR: 3.56 RINGS/OZ: 1000 RINGS/LBS: 16000 OZ/50 RINGS: 0.05 SPRINGBACK: 0.004" (0.1mm) |
|

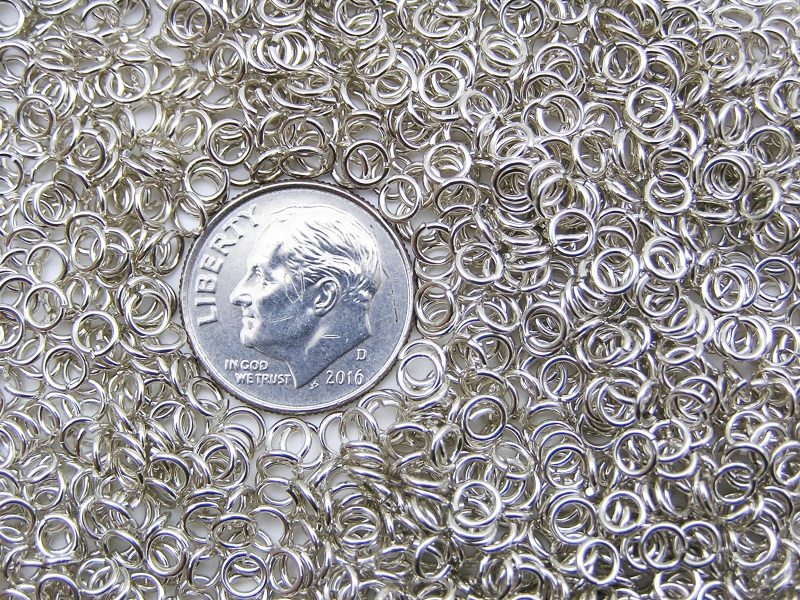

TITLE: 22AWG 3/32"
ACTUAL MANDREL DIAMETER: 0.094" (2.39mm) ACTUAL ID: 0.098" (2.49mm) ACTUAL WD: 0.025" (0.64mm) ACTUAL OD: 0.148" (3.76mm) AR: 3.92 RINGS/OZ: 925 RINGS/LBS: 14800 OZ/50 RINGS: 0.054 SPRINGBACK: 0.004" (0.1mm) |
|
TITLE: 22AWG 13/128"
ACTUAL MANDREL DIAMETER: 0.101" (2.57mm) ACTUAL ID: 0.106" (2.69mm) ACTUAL WD: 0.025" (0.64mm) ACTUAL OD: 0.156" (3.96mm) AR: 4.24 RINGS/OZ: 862 OZ/50 RINGS: 0.058 SPRINGBACK: 0.005" (0.13mm) |
|

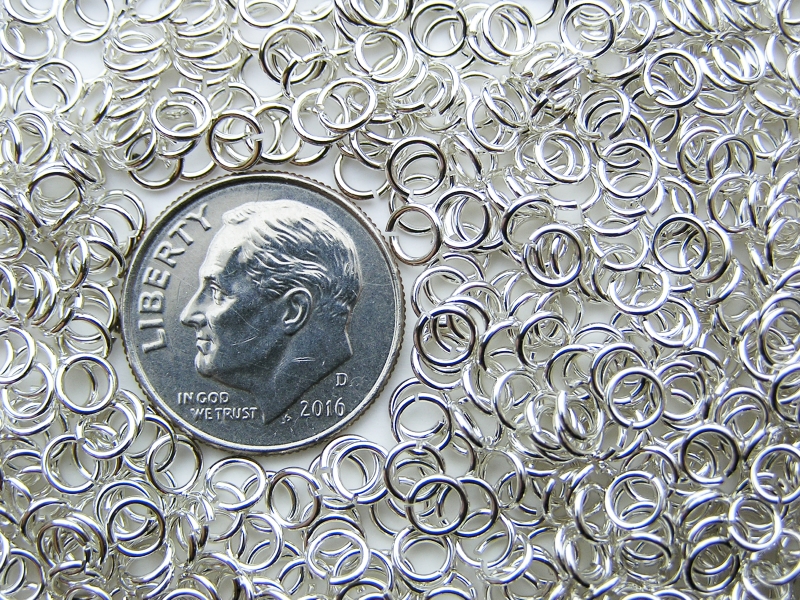

TITLE: 22AWG 0.104"
ACTUAL MANDREL DIAMETER: 0.104" (2.64mm) ACTUAL ID: 0.109" (2.77mm) ACTUAL WD: 0.025" (0.64mm) AR: 4.36 RINGS/OZ: 847 OZ/50 RINGS: 0.059 SPRINGBACK: 0.005" (0.13mm) |
|

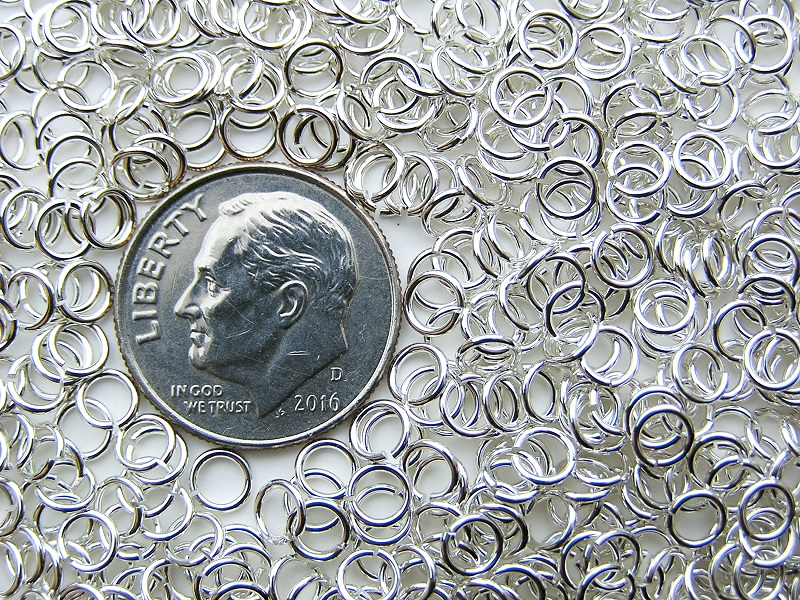

TITLE: 22AWG 0.106"
ACTUAL MANDREL DIAMETER: 0.106" (2.69mm) ACTUAL ID: 0.111" (2.82mm) ACTUAL WD: 0.025" (0.64mm) AR: 4.44 RINGS/OZ: 833 OZ/50 RINGS: 0.06 SPRINGBACK: 0.005" (0.13mm) |
|
TITLE: 22AWG 0.108"
ACTUAL MANDREL DIAMETER: 0.108" (2.74mm) ACTUAL ID: 0.112" (2.84mm) ACTUAL WD: 0.025" (0.64mm) AR: 4.48 RINGS/OZ: 819 OZ/50 RINGS: 0.061 SPRINGBACK: 0.004" (0.1mm) |
|

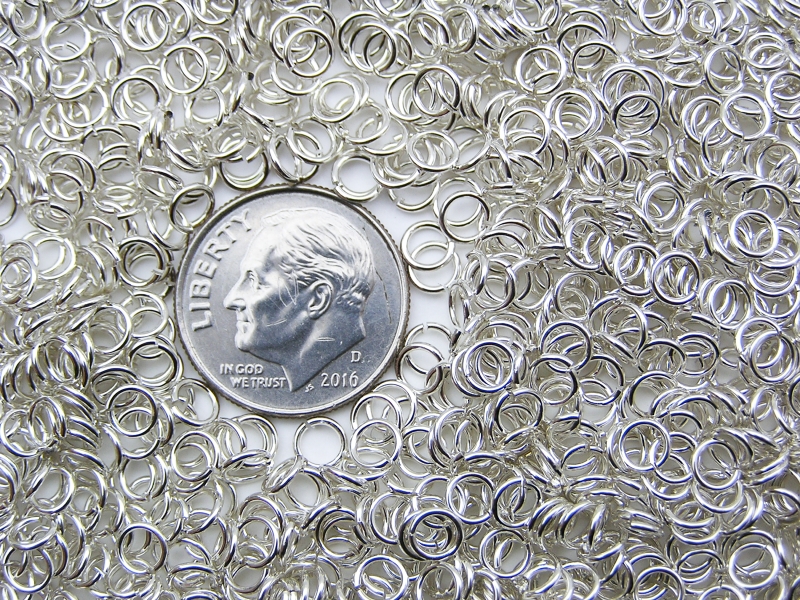

TITLE: 22AWG 7/64"
ACTUAL MANDREL DIAMETER: 0.109" (2.77mm) ACTUAL ID: 0.114" (2.9mm) ACTUAL WD: 0.025" (0.64mm) ACTUAL OD: 0.164" (4.17mm) AR: 4.56 RINGS/OZ: 806 RINGS/LBS: 12896 OZ/50 RINGS: 0.062 SPRINGBACK: 0.005" (0.13mm) |
|

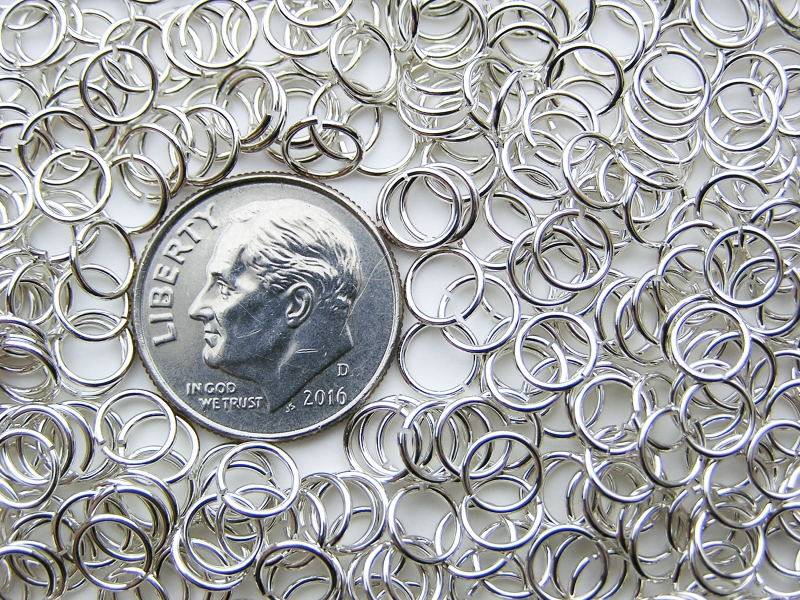

TITLE: 22AWG 0.155"
ACTUAL MANDREL DIAMETER: 0.155" (3.94mm) ACTUAL ID: 0.165" (4.19mm) ACTUAL WD: 0.025" (0.64mm) AR: 6.6 RINGS/OZ: 588 OZ/50 RINGS: 0.085 SPRINGBACK: 0.01" (0.25mm) |
