| 19AWG Argentium Silver Round Wire Saw Cut Jump Rings | |
|
ALL RINGS ON THIS PAGE: ARGENTIUM STERLING SILVER (93.5% SILVER) / 1 OZ MINIMUM PURCHASE / 0.008" (0.25mm) KERF / TUMBLED
FOR A MINIMUM OF 1 HOUR / TOLERANCE MARGIN OF ERROR 0.002" (0.05mm). NO WELDED RINGS ARE AVAILABLE. IF THERE IS
NOT A PICTURE, I HAVEN'T CUT THE RINGS YET AND THE SIZES ARE ESTIMATED. CLICK HERE FOR GOOGLE DOC SPREADSHEET OF ALL INFORMATION ON THIS PAGE. CHOOSE THE SIZE RING SIZE YOU WANT, CLICK ON "ADD TO CART," AND THEN ADJUST THE # OF OZ IN THE PAYPAL SHOPPING CART. *UNDERSTANDING THE DIFFERENCE BETWEEN RIGHT AND LEFT HANDED RINGS. NOTE: RINGS ARE SOLD AND MEASURED PER STANDARD OUNCE (28.35g) AND POUND (454g), NOT BY TROY WEIGHT |
|
|
TITLE: 19AWG 3/32"
ACTUAL MANDREL DIAMETER: 0.094" (2.39mm) ACTUAL ID: 0.097" (2.46mm) ACTUAL WD: 0.036" (0.91mm) ACTUAL OD: 0.169" (4.29mm) AR: 2.69 RINGS/OZ: 406 RINGS/LB: 6496 SPRINGBACK: 0.003" (0.08mm) |
|

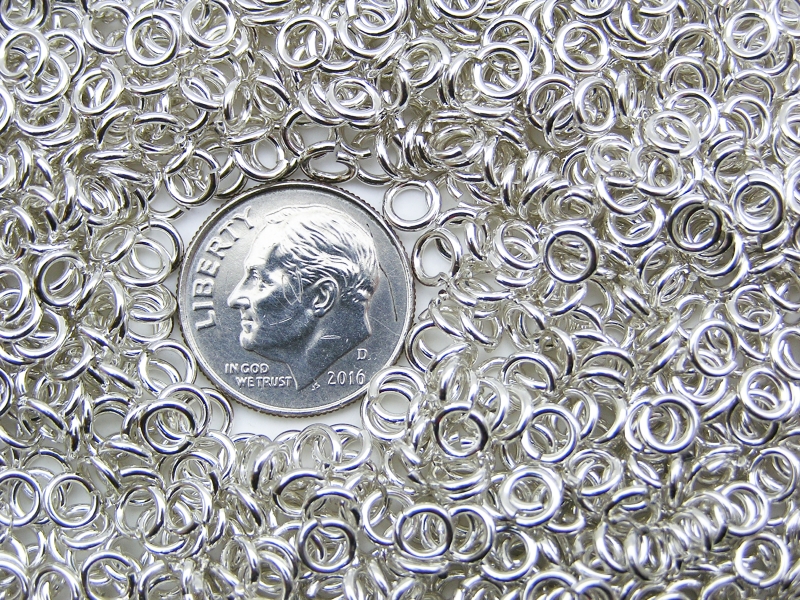

TITLE: 19AWG .106"
ACTUAL MANDREL DIAMETER: 0.106" (2.69mm) ACTUAL ID: 0.109" (2.77mm) ACTUAL WD: 0.036" (0.91mm) ACTUAL OD: 0.181" (4.60mm) AR: 3.03 RINGS/OZ: 381 RINGS/LB: 6096 SPRINGBACK: 0.003" (0.08mm) |
|

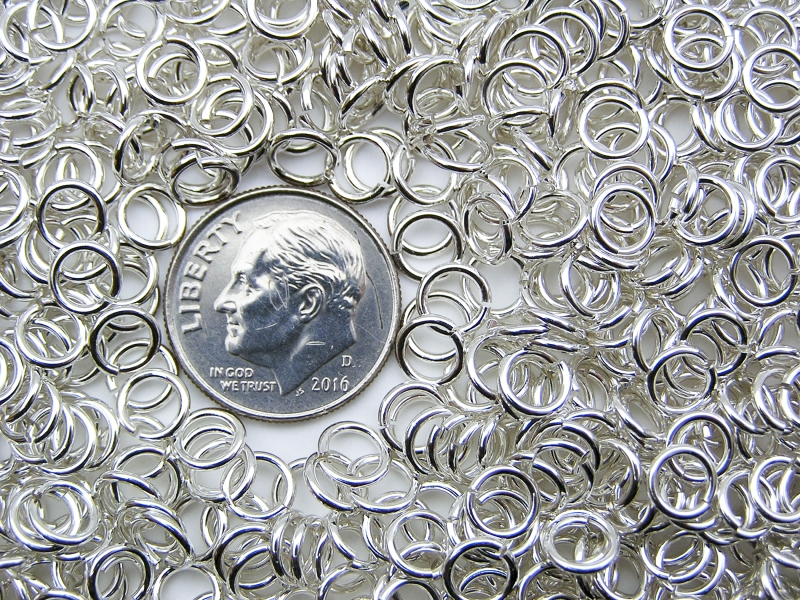

TITLE: 19AWG .146"
ACTUAL MANDREL DIAMETER: 0.146" (3.71mm) ACTUAL ID: 0.152" (3.86mm) ACTUAL WD: 0.036" (0.91mm) ACTUAL OD: 0.224" (5.69mm) AR: 4.22 RINGS/OZ: 290 RINGS/LB: 4640 SPRINGBACK: 0.006" (0.15mm) |
